Kevlar (a para-aramid fiber) is widely regarded as one of today's benchmark high-performance fibers. Its exceptional strength-to-weight ratio, thermal stability, cut resistance and structural integrity have made it a preferred material in aerospace, defense, industrial manufacturing and advanced personal protective equipment.
A rigorous understanding of the properties of Kevlar fabric is essential for informed material selection, structural optimization and product development. This article presents a materials-science oriented analysis of Kevlar's molecular structure, mechanical behavior, thermal properties and typical engineering applications.
Kevlar is a para-aramid fiber originally developed by DuPont. It is typically processed into yarns, woven or non-woven fabrics, or used as a reinforcement layer in composites.
The material's performance arises from three fundamental physical characteristics:
Rigid aromatic ring backbone (provides molecular stiffness)
High molecular orientation along the fiber axis (gives tensile strength)
Extensive inter-chain hydrogen bonding (increases crystallinity and stability)
These microscopic features are directly responsible for the macroscopic properties of Kevlar fabric used in engineering applications.
Kevlar's repeating chemical unit is p-phenylene terephthalamide (PPTA), a highly conjugated, rigid polymer backbone that belongs to the aramid family.
Aromatic polyamide structure with high chain rigidity.
High degree of chain alignment yields elevated crystallinity.
Strong inter-chain hydrogen bonding network contributes to mechanical robustness.
| Structural Feature | Engineering Effect |
|---|---|
| Aromatic rings (rigid backbone) | Higher modulus and resistance to deformation |
| High chain orientation | Elevated tensile strength and strength-to-weight ratio |
| High crystallinity & hydrogen bonding | Improved thermal stability and fatigue resistance |
These structure-property relations form the scientific basis for the properties of Kevlar fabric observed in practice.
All following properties are well documented in technical literature and reflect Kevlar's engineering performance.
Kevlar fibers exhibit high tensile strength due to oriented polymer chains and strong inter-chain interactions. This makes Kevlar suitable as a reinforcement for applications requiring sustained load carrying capacity (e.g., protective layers, conveyor reinforcements and composite skins).
Compared with many conventional fibers, Kevlar has a high modulus—i.e., it resists elastic deformation—making it effective at maintaining dimensional stability under load and enhancing stiffness when used in laminates.
Kevlar's low density combined with high strength yields a favorable strength-to-weight ratio, which is advantageous for aerospace components, ballistic systems and any application where weight reduction is critical.
Kevlar can absorb and dissipate impact energy through fiber deformation and delamination mechanisms in composite layups, which is why it is commonly used in protective equipment and impact-resistant structures.
Kevlar is a non-melting polymer with high thermal decomposition temperature. It maintains structural integrity under elevated temperatures encountered in many industrial processes and high-friction environments.
Kevlar is inherently flame resistant and does not continue to burn once the ignition source is removed. Its charring behavior can add residual structural capacity in fire scenarios.
Kevlar is stable against many organic solvents and oils but can be attacked by strong acids and strong bases. Compatibility assessments are recommended when the material is to be used in chemically aggressive environments.
Prolonged ultraviolet exposure degrades Kevlar fibers (chain scission and surface embrittlement). For outdoor or UV-exposed applications, surface coatings or protective over-laminates are typical mitigation strategies.
Fabric architecture significantly influences in-service behavior:
Plain weave: High dimensional stability and abrasion resistance, widely used for structural fabrics.
Twill weave: Increased drapability and conformability for curved surfaces.
Unidirectional (UD) tape/fabric: Maximizes strength in the fiber direction; commonly used in laminates to tailor load paths.
Choosing the correct weave or ply orientation is a key step in matching properties of Kevlar fabric to an application's mechanical requirements.
Kevlar's real-world uses reflect its balanced mechanical and thermal performance:

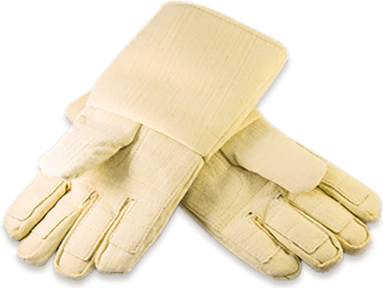

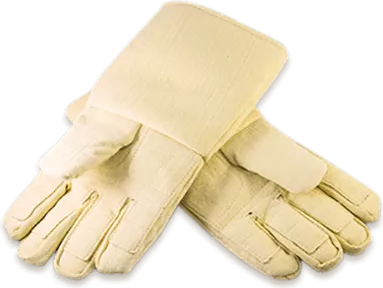

Protective equipment: cut-resistant gloves, stab-resistant layers, helmet liners, ballistic composites (discussed without claiming specific protection ratings here).

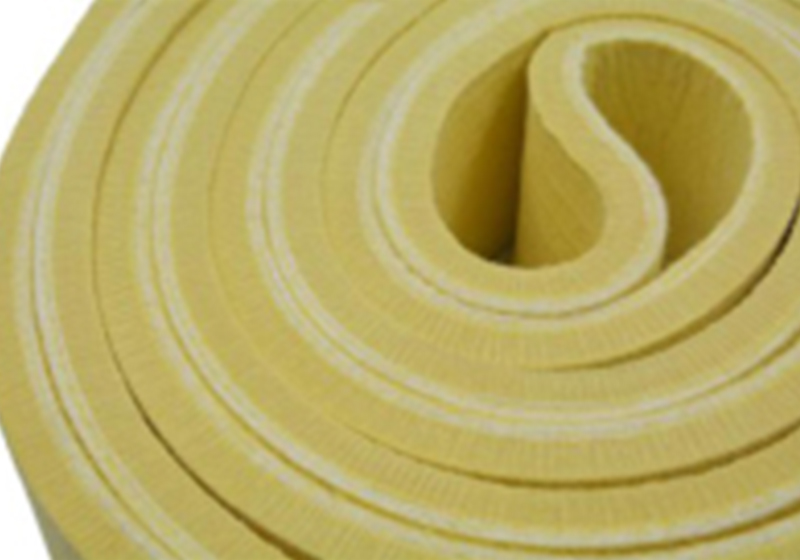

Industrial: high-temperature conveyor belt reinforcement, wear-resistant pads, friction materials.
Aerospace & automotive: composite reinforcement to reduce weight while maintaining strength.
Consumer & sports: high-performance protective apparel and equipment.
Each application leverages different aspects of Kevlar's property set—design decisions should be guided by quantitative performance targets.
A balanced material assessment must note Kevlar's limitations:
Lower compressive strength relative to tensile strength—care is needed where compressive loads or buckling may occur.
UV degradation risk requires protective measures for outdoor service.
Chemical vulnerability to strong acids and bases—chemical exposure plans are essential.
High stiffness can limit formability compared with ultra-high molecular weight polyethylene (UHMWPE) or some thermoplastics.
Manufacturing and material costs are higher than common commodity fibers, cost-benefit analysis is advised.
Understanding these limitations helps engineers make appropriate trade-offs when specifying Kevlar-based solutions.
Kevlar's unique molecular architecture underpins its standout properties of Kevlar fabric: high tensile strength, favorable strength-to-weight ratio, thermal stability and good impact performance. While not universally appropriate for every design challenge, Kevlar remains a dependable choice where high performance, durability and weight savings are priorities.
