Views: 31 Author: Site Editor Publish Time: 2026-06-19 Origin: Site
To build a complete aluminium extrusion facility, you need a full set of aluminium extrusion equipment that covers the entire process, from heating and extrusion to cooling, straightening, and finishing.
Extrusion press machine
Billet heating furnace
Extrusion die system
Run-out table
Cooling system
Stretching machine
Cutting system
Aging furnace
In simple terms, a complete aluminium extrusion plant setup includes extrusion machinery, heat treatment systems, and material handling and protection systems.
Before selecting equipment, it is important to understand the extrusion workflow. This helps clarify the role of each machine in the production line.
Billet Heating
Aluminum billets are heated to approximately 400–500°C to improve plasticity
Extrusion
The heated billet is forced through a die using an extrusion press machine
Profile Handling
Hot aluminum profiles are transferred via the run-out table
Cooling
Profiles are cooled using air or water to control material properties
Stretching
Internal stresses are removed and straightness is improved
Cutting
Profiles are cut to the required length
Aging
Heat treatment enhances mechanical strength
Each stage relies on specific aluminum extrusion process equipment to ensure stable and efficient operation.

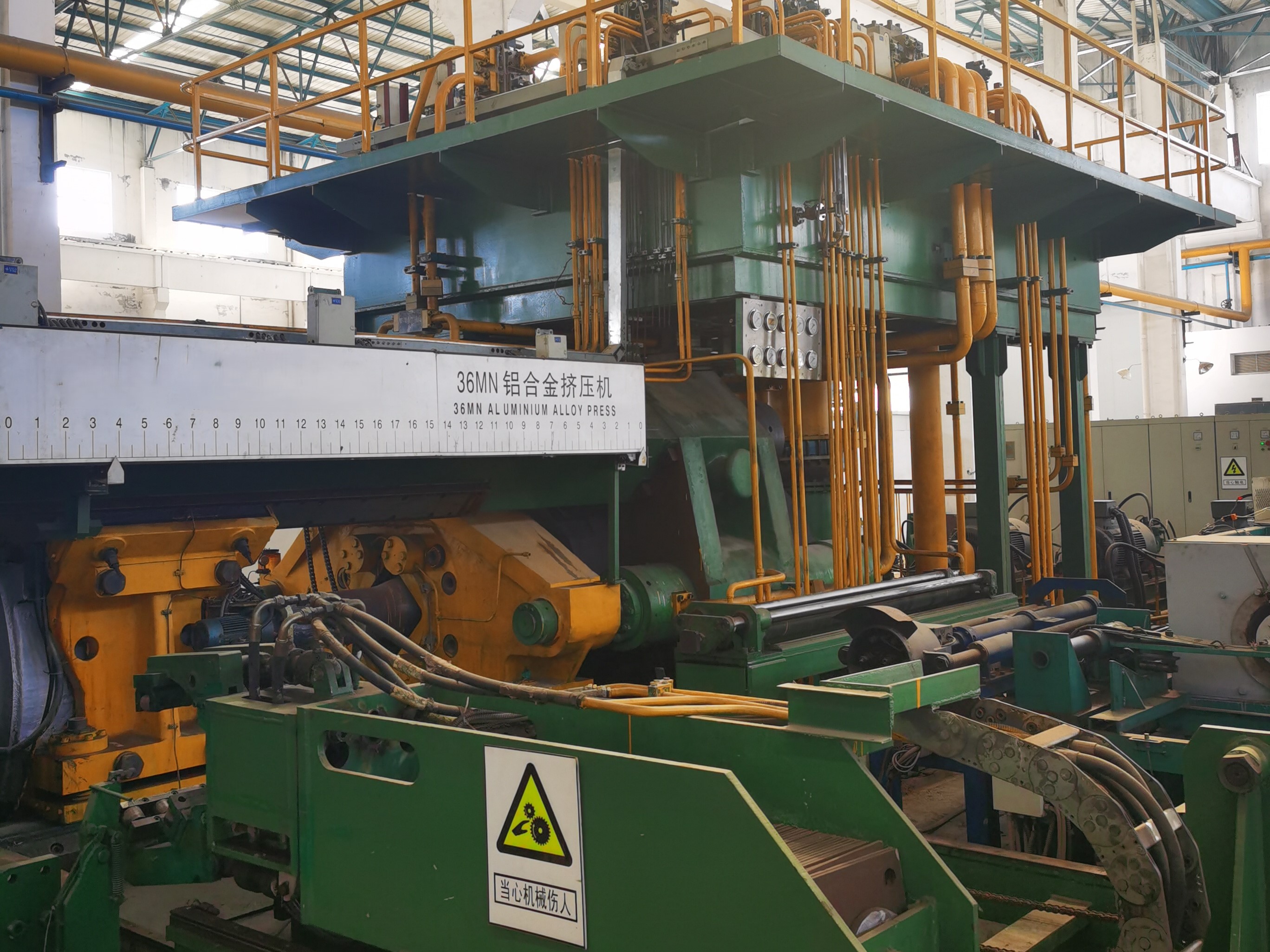

The extrusion press machine is the core of the entire production line.
Functions:
Generates extremely high pressure, often several thousand tons
Forces heated aluminum through the die
Types:
Direct extrusion
Indirect extrusion
The press capacity determines production output and the size range of profiles.

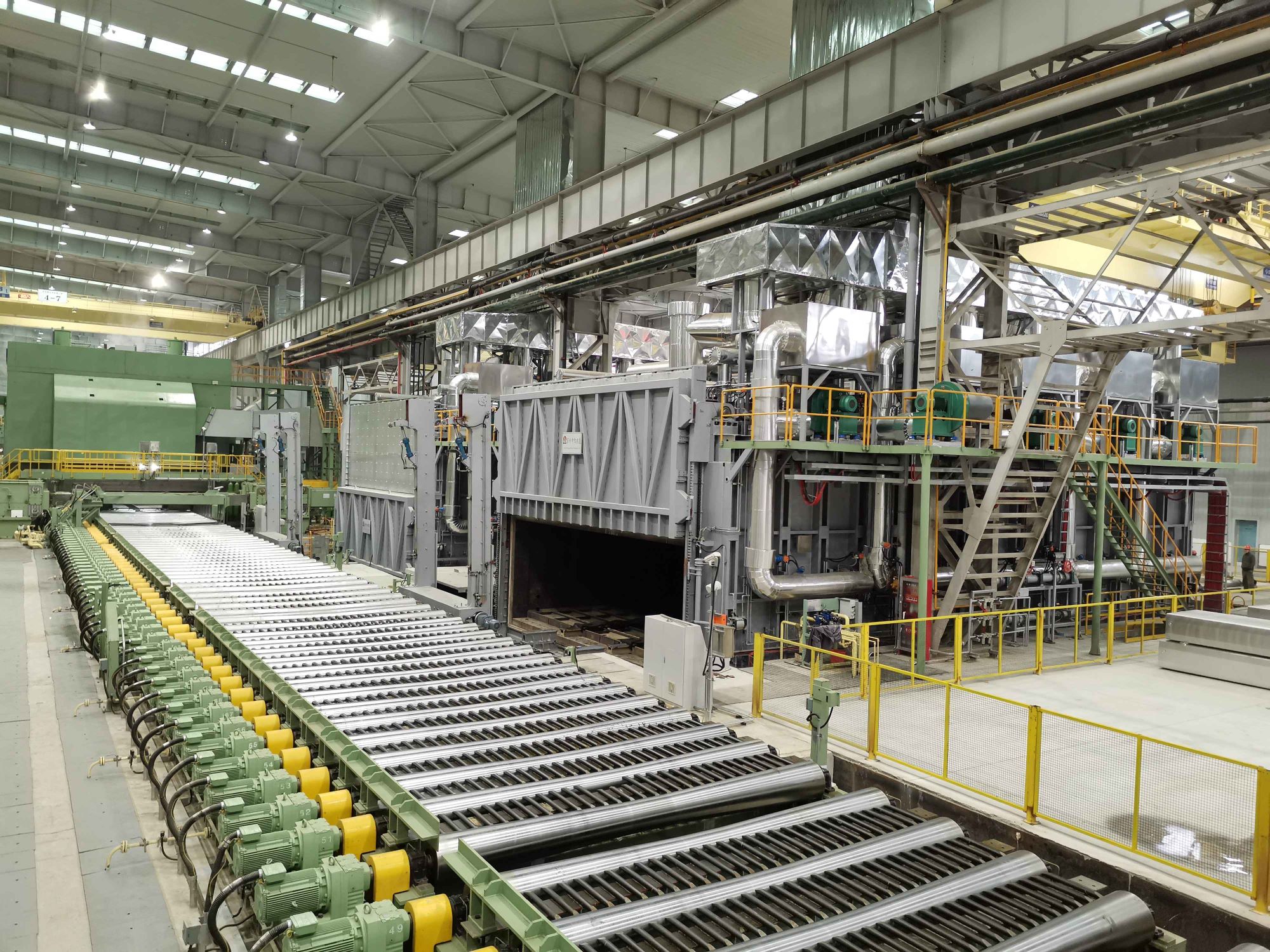

The billet heating furnace ensures billets are heated evenly before extrusion.
Key considerations:
Temperature accuracy
Heating uniformity
Energy efficiency
Poor temperature control can lead to extrusion defects.
The die system defines the final shape and precision of the product.
Functions:
Controls cross-sectional geometry
Affects surface finish
Determines dimensional tolerances
High-quality dies are essential for consistent production.
The run-out table supports and transports high-temperature profiles after extrusion.
Key features:
Heat resistance
Stable conveying
Prevention of deformation
It plays a critical role between extrusion and downstream processes.

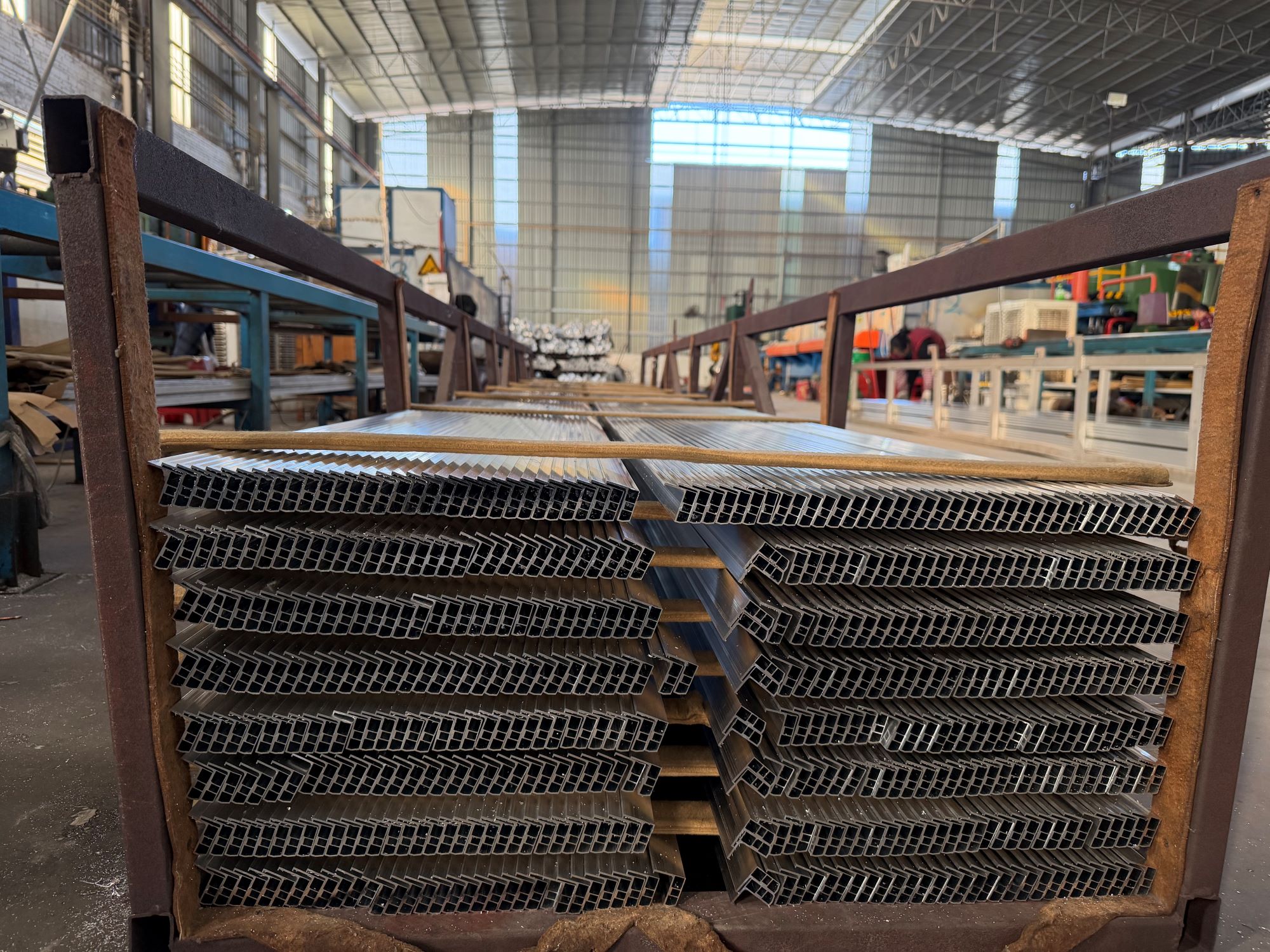

The cooling system directly impacts final material properties.
Methods:
Air cooling
Water quenching
Cooling rate influences strength and microstructure.
The stretching machine removes internal stress.
Functions:
Improves straightness
Enhances dimensional stability
The cutting system ensures precise length control.
Requirements:
High accuracy
Automated operation
The aging furnace is used for heat treatment.
Functions:
Improves mechanical properties
Stabilizes material structure
In addition to core machines, supporting systems are equally important.
Conveyor systems
Automation control systems
Material handling systems
During extrusion:
Aluminum profiles can exceed 500°C
Surfaces are highly vulnerable to scratches and contamination
This makes high-performance, heat-resistant materials essential.
In aluminium extrusion operations, material protection during high-temperature handling directly affects product quality and yield.
With over 20 years of industry experience, Calm specializes in high-temperature industrial felt solutions for extrusion lines.
Core products include:
Heat-resistant conveyor belts
Nomex felt strips

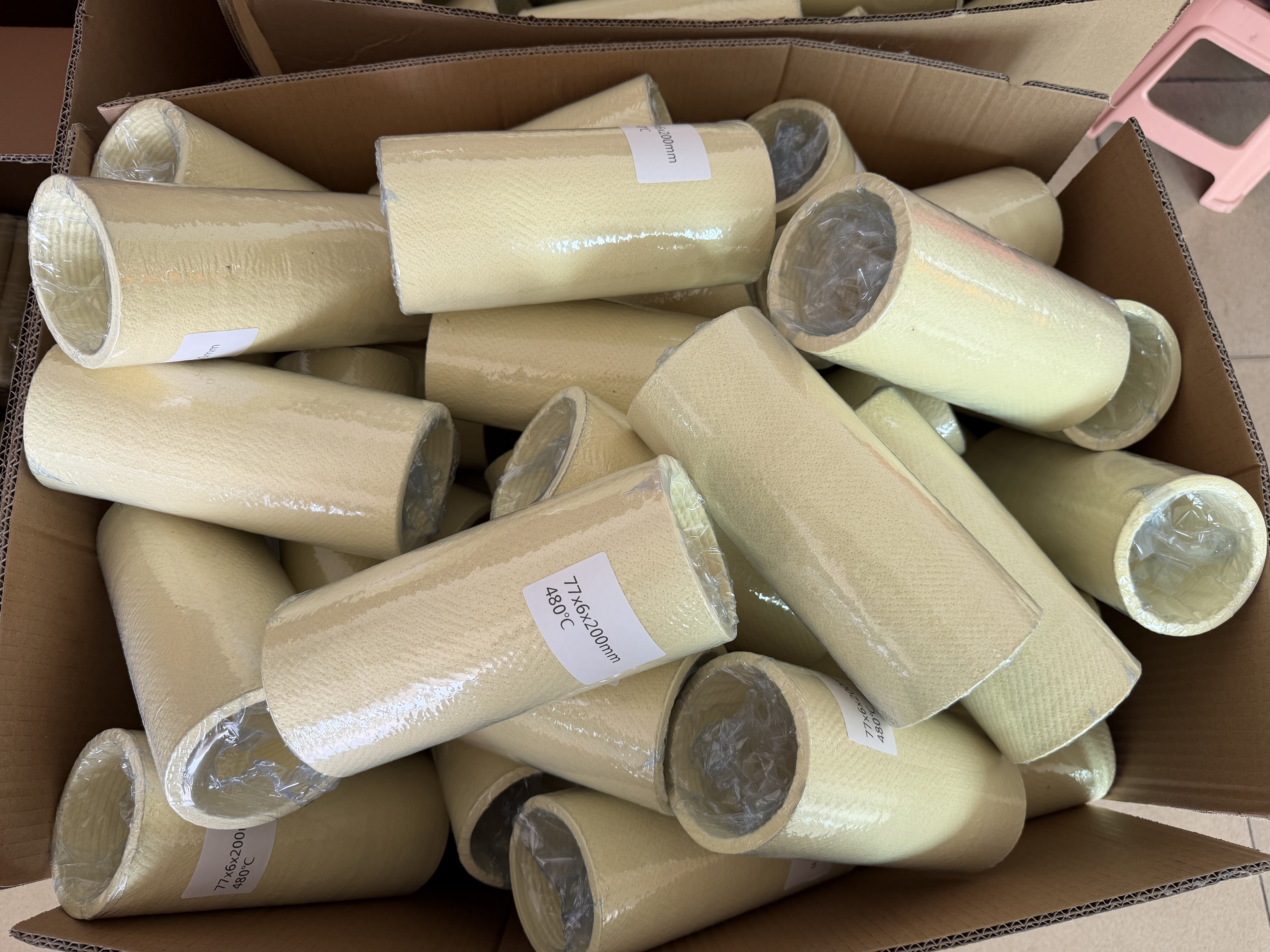

Kevlar felt rollers
Spacer sleeves
Material capabilities:
PBO up to 600°C
Kevlar up to 480°C
Nomex up to 280°C
Polyester up to 180°C
Supported by advanced automated production lines and strict quality control systems, Calm’s solutions help:
Prevent surface damage
Improve conveying stability
Extend equipment lifespan
These materials have become an essential part of modern aluminium extrusion equipment systems.
Selecting the right equipment requires a comprehensive evaluation of your production needs.
Production capacity
Profile complexity
Level of automation
Energy efficiency
Budget constraints
Small-scale operations:
Medium or low-tonnage presses
Semi-automated production lines
Large industrial plants:
High-tonnage presses
Fully automated systems
Complete supporting equipment
Modern extrusion equipment offers several advantages:
Higher production efficiency
Consistent product quality
Reduced material waste
Lower long-term operating costs
What machines are used in aluminium extrusion?
Key machines include extrusion press machines, heating furnaces, cooling systems, and more.
How much does aluminium extrusion equipment cost?
Costs vary widely depending on scale, typically ranging from hundreds of thousands to several million dollars.
What affects extrusion quality the most?
Die design
Temperature control
Material handling and protection systems
How to maintain extrusion machines?
Regular maintenance, lubrication, and inspection of critical components are essential.
What is the lifespan of extrusion equipment?
Typically 10–20 years, depending on maintenance and usage conditions.
Building an efficient extrusion facility requires more than just purchasing aluminium extrusion equipment. It involves proper system integration and reliable supporting materials.
Every stage, from extrusion to handling, directly impacts final product quality.
