You are here: HOME » PRODUCT » Felt Roller

CALM has been supplying conveyor roller covers to the aluminum extrusion industry for many years. Each conveyor roller sleeve is made-to-order based on customer needs to ensure the machine can run properly.



We offer a wide range of industrial felt materials to choose from. The four heat resistant felts - PBO, Kevlar, Nomex, and Polyester - are available for different temperature zones during extrusion. Besides, resin treatment can be applied on request to improve durability.





SPECIFICATIONS                                                  Working Temp

Inner diameter (ID): 41mm - 127mm                         PBO - 600℃

Thickness: 5mm - 14mm                                              Kevlar - 480℃

Length: Custom made                                                  Nomex - 280℃

                                                                                          Polyester - 180℃











               Conveyor Felt Roller




How the Industrial Felt Roller Cover Is Made





How to produce the PBO + Kevlar roller cover? The needle machine punches the PBO felt layer on the Kevlar roller cover base. And needles punch around the correct mould and make the precise size of the industrial felt roller.





It shows the production process of the polyester conveyor roller sleeve. The needles punch the raw material around the roller mould. Finally, the conveyor felt sleeve for aluminum extrusion is completed.





This is the manufacturing of PBO + Kevlar roller cover that can resist 600℃ for the aluminum extrusion industry. PBO fiber goes around the roller mould, and needles punch to form a conveyor roller cover.



   Want to know more about the production process?




Specifications



  PBO felt roller
PBO
                      Kevlar felt roller
Kevlar
                        Nomex felt roller
Nomex
                      Polyester felt roller
Polyester
  Type feltRoller_ico6
 Roller-PK
feltRoller_ico6
Roller-K
feltRoller_ico6
Roller-PE
feltRoller_ico6
Roller-PE
  Material PBO Kevlar Nomex Polyester
  Color Brown Yellow Beige White
  Inner diameter 41 43 44 45 49 50 51 60 61 62 63 76 77 80 81 82 90 95 100 101 102 114 115 120 127
  Length Custom made as customer's request
  Thickness 5mm - 14mm
  Working temperature 600℃ 480℃ 280℃ 180℃
  Mostly suitable for
before fly cut
(Ultra-high temp. Zone)
Effectively avoid scratch marks made by graphite


after fly cut & run out table
(High temp.zone)
the output table
after straightening machine
(Middle temp. zone)
finished saw table &
room-temperature area only
(Low temp. Zone)
  Packing way Packed with film and put in cartons
  Shipping way Express/Air/Ocean/Railway
  Lead time About one week
  OEM Yes
  Techniques Needle punched
  Additional Treated with resin, hard type treatment

   For more details of heat resistant conveyor roller cover!








Advantages



 Endless & Seamless:
Each of our conveyor roller cover features no joints and seams. It has no weak points with highly uniform thickness.

 Accurate dimension:
With the complete forming equipment, our heat resistant conveyor roller sleeve can install on existing conveyor system perfectly without any deviation.

 Made-to-order:
Four industrial grade felts are available to meet customer needs, and we can process the industrial felt roller into pure or blend structure in a reasonable ratio.

  Smooth felt surface:
With the needle punched technique, the surface of conveyor felt sleeves is smooth with no woven pattern, providing better protection to aluminum profiles.

 100% pure felt:
Advanced inspection equipment ensures the heat resistant felt cover has no residue of broken needles or hidden impurities. So it won’t leave any stains and dents on aluminum profiles.

 New-tech fiber:
Compared to traditional material graphite, industrial felt roller features excellent heat resistance with a soft touch. It does not easily scratch or leaves marks on the surface of aluminum extrusions as graphite does.

 High strength:
The high-quality conveyor roller sleeve has a thick fiber layer with high density. With a strength of 5.8 GPa and a modulus of 280 GPa, PBO fibers are the highest among the existing chemical fibers, far exceeding steel and carbon fibers.

 Resin hardening:
Full resin or semi-resin treatments are available to improve the wear resistance and durability of the conveyor roller cover. It also prevents aluminum swarf or dirt from sticking to the felt, reducing damage to the surface of aluminum profiles.


   Ask a quick quote for conveyor roller sleeve!



FAQ


  • Q How many kinds of felt rollers does Calm offer?

    A
    4 industrial felt in different heat resistances to choose from - PBO (600℃), Kevlar (480℃), Nomex (280℃), and Polyester (180℃).
    We can also produce a blend structure with two different felts in a workable way according to your needs.
  • Q What is the function of felt roller sleeve?

    A Aluminum profiles fresh from the extruder are soft and hot. And the industrial conveyor roller cover has excellent heat resistance, which is a vital conveyor part to protect the surface of aluminum extrusion.
  • Q What is the superiority of calm conveyor felt cover?

    A
    Ordinary felt roller has low strength and poor resistance to high temperatures. And it's easy to get moldy inside, leading to short service life.
    Graphite, as a traditional material, have low buffering and easy to damage the profile surface with scratch marks.
    In contrast, the Calm heat resistant conveyor roller cover is more durable and efficient than the above materials.
  • Q What is the blend structure of felt roller?

    A Take PBO + Kevlar conveyor roller cover as an example. Our production standard is 3mm PBO layer + 7mm Kevlar layer.
    And you can also customize the fiber layer in 4mm, 5mm, or any other thickness you want.
    By the way, the thicker the PBO layer, the more durable it is, but the more it costs. It all depends on your needs and budget.

   Still have questions about the conveyor roller cover?

Why choose us

Fast Delivery Time

_______________________________________________________________________________________

We can always finish the order about 3-7 days after receiving the payment. And we can send goods by courier/ocean/air/train as your demand.

Premium Materials

_______________________________________________________________________________________

Four industrial felt materials are of high-quality with different heat resistances range from 180-600˚C for aluminum extrusion. These new-tech fibers are the primary material of conveyor roller cover / conveyor felt belt / spacer sleeves / felt pads / felt strip / heat resistant timing belt.

Clean & Smooth Surface

_______________________________________________________________________________________

Calm-brand conveyor felt rollers are specially developed for customers with high requirements for the surface. Defects such as material dust, unevenness, scaling, and aluminum pollution are not present. Industrial felt products adopt advanced new technology, making them more durable and cost-effective with a smooth surface. Particularly suitable for producing high-quality aluminum products with electrophoretic or polished surfaces.

   To know more about our services!

Features


High quality, High density
High intensity

Optimal thermal
insulation property

Wide selection for materials/products

Extremely smooth
felt surface

Strict inspection procedure


Professional use instruction

Competitive price

Good after-sale service

Packing



Each PBO conveyor roller cover is packed

with shrink film and put in a carton.




Calm-brand Kevlar conveyor roller covers can withstand temperatures of up to 480℃.




Our industrial felt products are placed orderly

in finished product warehouse.




Each finished Kevlar felt tube is shrink-wrapped and will be shipped in cartons.




Packing of Polyester felt tube sleeves

with 180℃ heat resistance.




A carton of Kevlar roller covers
for conveyor system in aluminum extrusion.


    Any requirements for product packing?

How PBO Felt Rollers Are Made

  Heat resistant felt has a great impact on the quality of the finished aluminum profile as well as the production process. To a large extent, felt products play an important role in the conveyor system. From the beginning to the end, all steps in the extrusion process are inseparable from the felt. As a result, the degree of wear and tidiness, the smoothness of conveying, the slippage or blockage of the product line, and other such problems are closely related to the quality of the felt products.

Calm heat resistant felt roller for aluminum extrusion

  Background



In the forming process of aluminum extrusion, the early wood strips and graphite have been replaced by heat resistant felt. It is soft and non-polluting, which is resistant to heat and abrasion. It solves the problem that traditional graphite cannot prevent the scratching of profiles and the black marks left by after-treatment. In recent years, many profile manufacturers tend to adopt industrial felt products.



PBO is a new-tech fiber that can withstand up to 600℃. This excellent heat resistance makes it an ideal option for an ultra-high temp zone in the extrusion line. Now, take PBO felt roller as an example. Let's get to know more about high-grade felt products from its production process.

   Production process

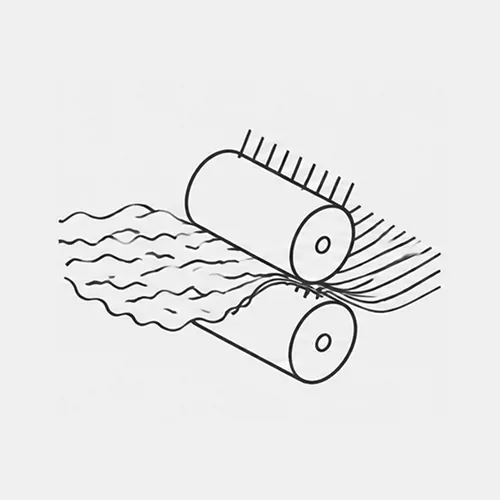

    Card

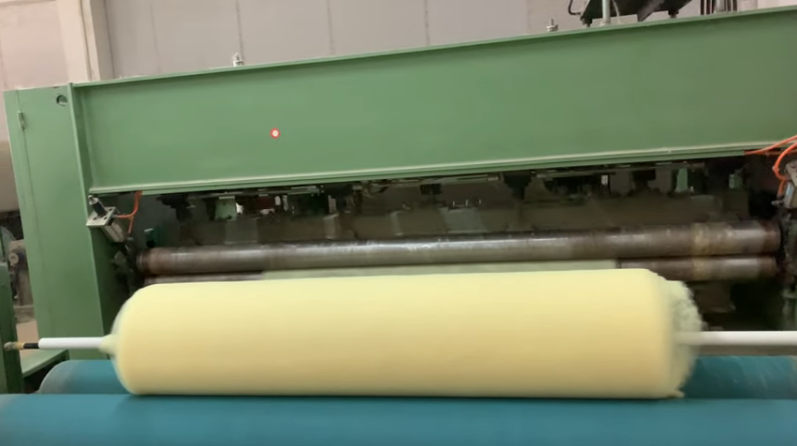

The working principle of the carding machine is to open and comb the PBO fibers. Therefore, all the curly fiber lumps can become a straight single fiber. Meanwhile, it can remove the impurities and short lint in the fibers. In the final stage of carding, the needle machine will punch the pure PBO fibers to become the felt layer. You can click here to get some detailed information about carding.

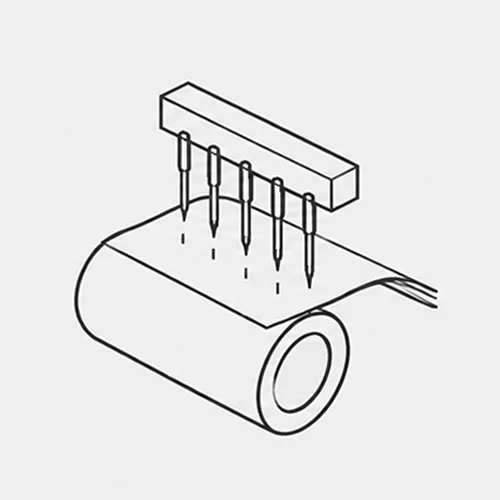

  Needle punch

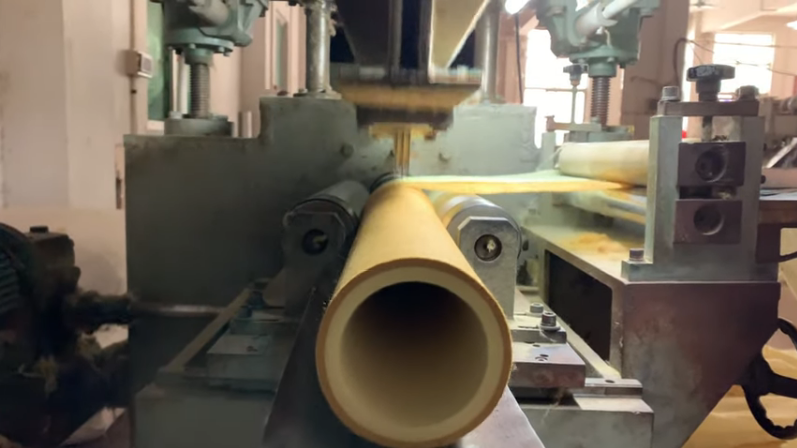

You can clearly get across the needle-punched technique through this video. It shows how the needle machine works with PBO+Kevlar felt tube. PBO felt layer goes around the roller mold, and needles punch evenly on the felt. This step makes the felt roller more compact and stronger. As you can see, the felt roller's surface is smooth and clean without a woven pattern, which can provide great protection to the profile.

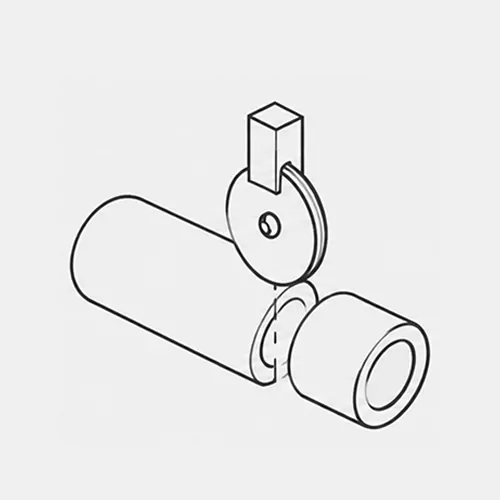

  Cut



Here is a video that shows how to cut the PBO felt tube with an electric rotary fabric cutter. The skillful craft ensures a fast cutting with a burr-free edge. What's more, no matter in specification or quality, all Calm felt tubes are perfect satisfy with the requirement of our clients.

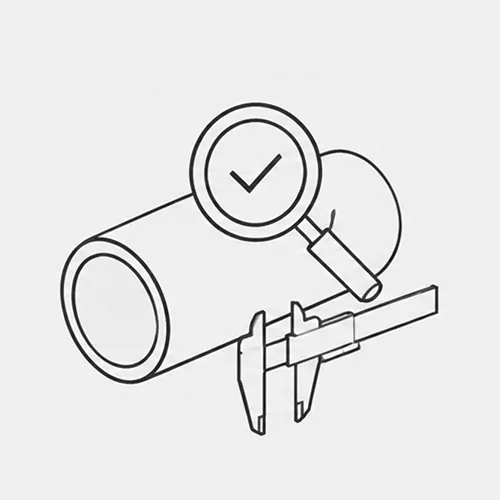

  Inspection



Even when production is over, it doesn't mean that our work is over. Our professional quality control staff will inspect all the finished products with various testing equipment. To ensure that no broken needles remain inside the felt and that all products are in spec. Calm always insists that only products that pass a series of rigorous tests are delivered to our customers.


Detection

   Other services
  Resin treatment



On the one hand, full resin or semi-resin treatments are available to improve the wear resistance and durability. The service life of the hardened felt is nearly double that of the original. On the other hand, it prevents aluminum swarf or dirt from sticking to the felt, which can better protect the profile surface.

  OEM



Calm offer OEM solution with abundant labors and a variety of advanced equipment. We supply both marking and non-marking industrial felt tube. This means you can customize with or without our logo, or even mark a specific logo as you want.

  Conclusion



Calm is a top supplier of heat-resistant felt products in China with over 18 years of experience. We only use premium high-temp fiber to produce all our heat resistant felt products. And we offer various industrial felt products for aluminum extrusion, such as felt belts, felt pads, felt strips, and more. If you want to learn more information, please feel free to contact us at toby@gdcalm.com. We look forward to hearing from you!
